Model: JV-1200833VS(US)

Rated Voltage: 12V
Power: 10W
Maximum Current: 833mA
Material: ABS
Drawings: Click Download
Contact us for details

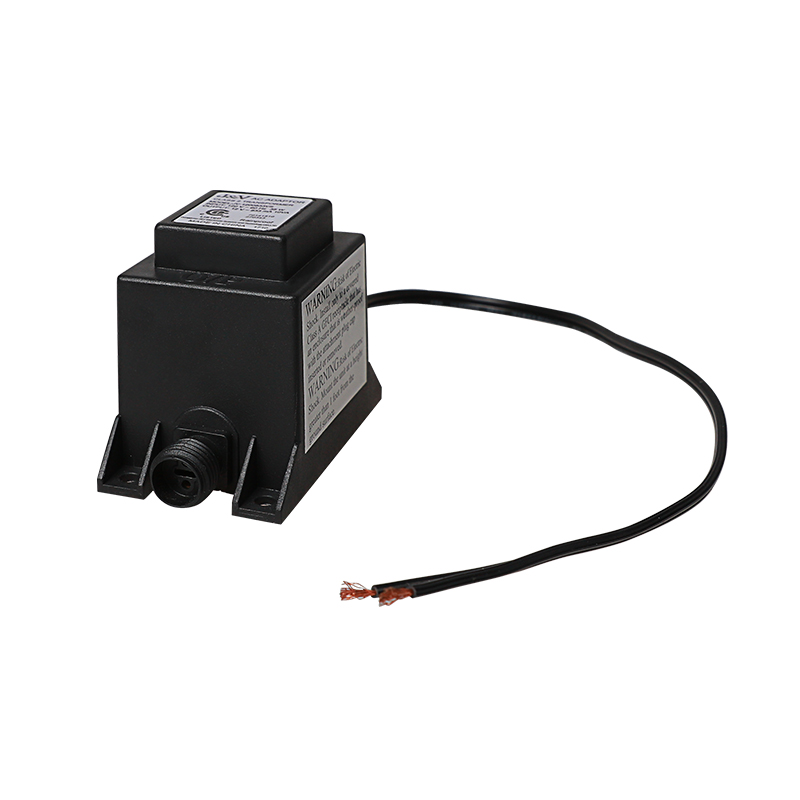

Waterproof low voltage transformer 10W

10W Outdoor waterproof transformer (American Standard) 120V to 12V

IP-Rated outdoor low-voltage transformers manufactured by J&V
Suitable for indoor and outdoor household appliances
Power range 10-60W

Features:
1. Strong inner core, safe voltage transformation;
2. Flame retardant shell, overheating protection, short circuit protection, grounding protection;
3. The product wire meets UL requirements, and the wire type, wire number, and certification instructions are printed by the wire manufacturer;
4. The product size conforms to the drawing requirements
5. The transformer must be subjected to a 100% insulation withstand test in accordance with UL 5085-3.
Model: JV-1200833VS
Frequency characteristics: Low frequency
Core shape: EI type
Moisture-proof method: potting type
Input: 120V~60Hz
Output: 12~833mA 10VA
Power: 10W
Temperature: -10℃~+40℃
