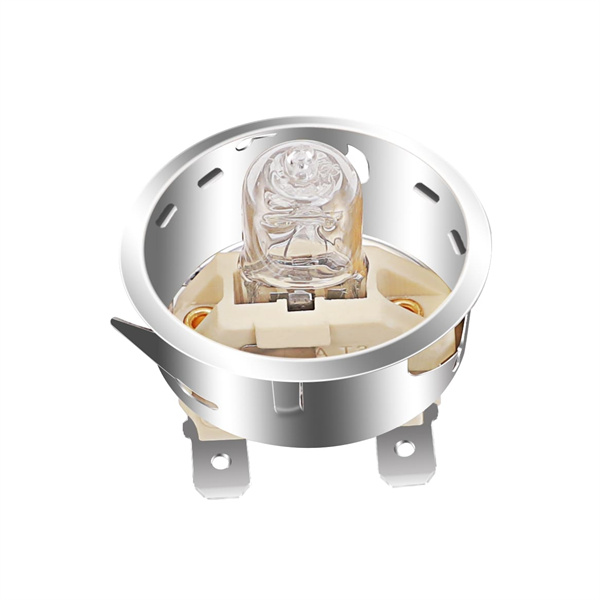

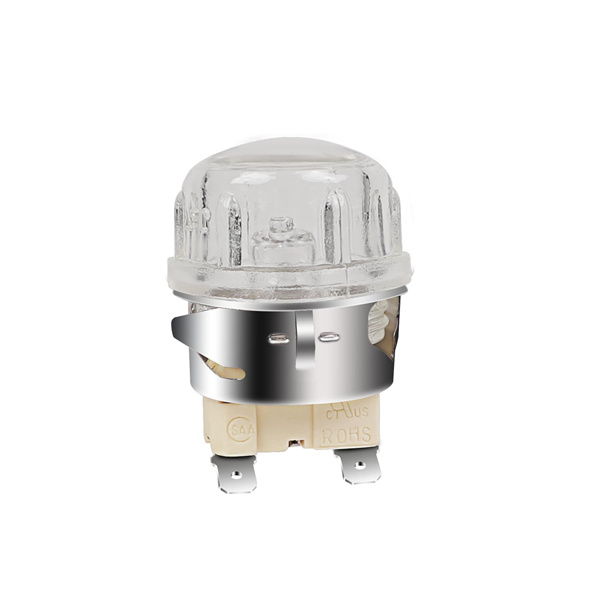

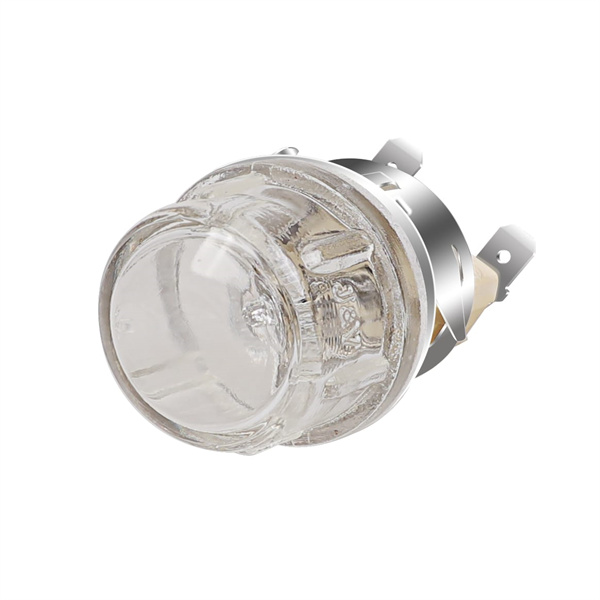

Model: 88.51.3.34.91507

Rated Voltage: 120V
Power: 25W
Lamp Holder: G9
Mounting Size: φ35.5mm
Material: Stainless Steel
CERTIFICATE: UL、CSA、TUV、CE、CQC、ROHS
  • Oven lamps with halogen mains voltage lamps specified upper limit and nominal voltage
  • Material thickness indication in millimeters (1.0-1.2mm in this product)
  • Terminals (in mm) for electrical connection and/or grounding indication (in this product, 6.3*0.8mm)
  • Rated temperature T550 (continuous use)
Contact us for details
Oven Lamp Manufacturer

Description:
We are oven lamp manufacturer, which are mainly aimed to ovens, microwaves, BBQ grills. Our common oven light installation dimensions are 30*70mm, 55*70mm, φ35.5mm, φ48mm, φ67mm. Shade type, bulb type, base material, etc. can be customized according to customer needs.

Parameters:
Model: 88.51.3.34.91507
Voltage: 120V
Power: 25W
Lamp holder: G9
Terminal: 250 horizontal male terminal (6.3x0.8)

Features:
1. High temperature resistance, low working temperature, good heat dissipation, not easy to cause the lampshade to age and turn yellow
2. High strength and good light transmittance
3. Good heat dissipation performance and long service life
4. Low operating voltage during operation, safe and reliable
5. The bulb is small in size and easy to install
6. High color rendering index
7. Energy saving and environmental protection

8. Quality assurance, through multiple international certifications


Note: Due to the special products of our company, different specifications will have different prices, so the exact price cannot be determined. If you are interested in buying, please contact our customer service staff, thank you for your cooperation!

Brand:

J&V

Product type:

Oven Lamp

Model:

88.51.3.34.91507

Mounting size:

φ35.5mm

Bulb:

G9

Power:

25W

Voltage:

120V

Bulb max temperature:

550 degrees Celsius

Lamp holder material:

Ceramic lamp holder 88.51

Shade material:

Small round borosilicate, maximum temperature 550℃

Lampshade installation method:

Threaded

Lamp housing material:

Stainless steel

Terminal:

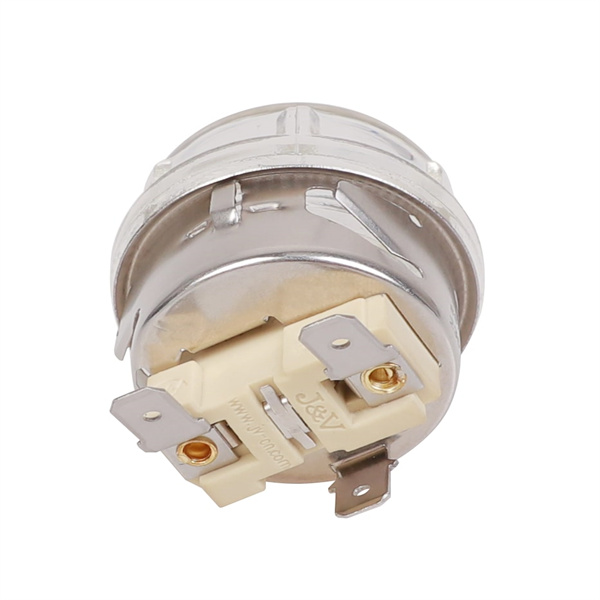

250 horizontal male terminal (6.3x0.8), Z-shaped foot for lamp holder

Safety:

UL CSA TUV CE CQC ROHS
