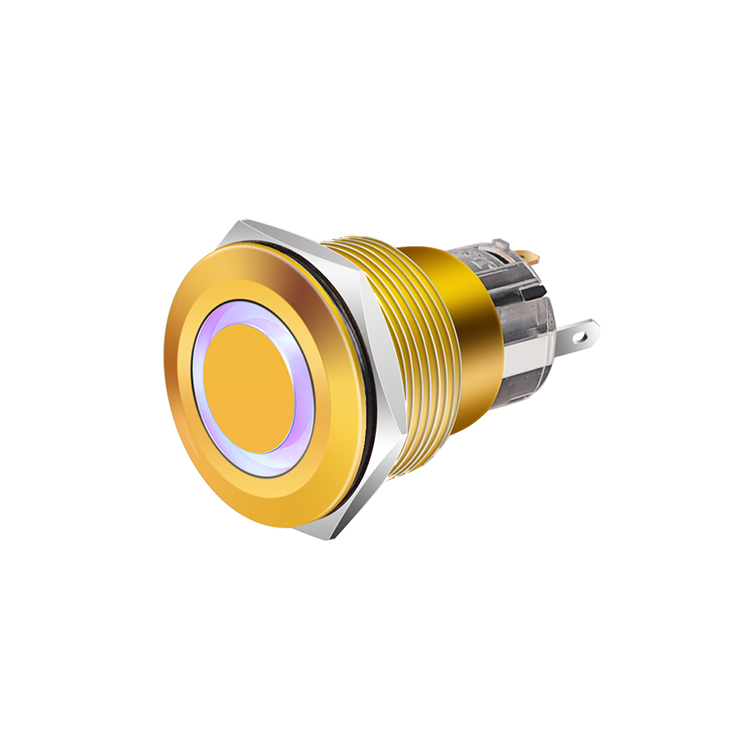

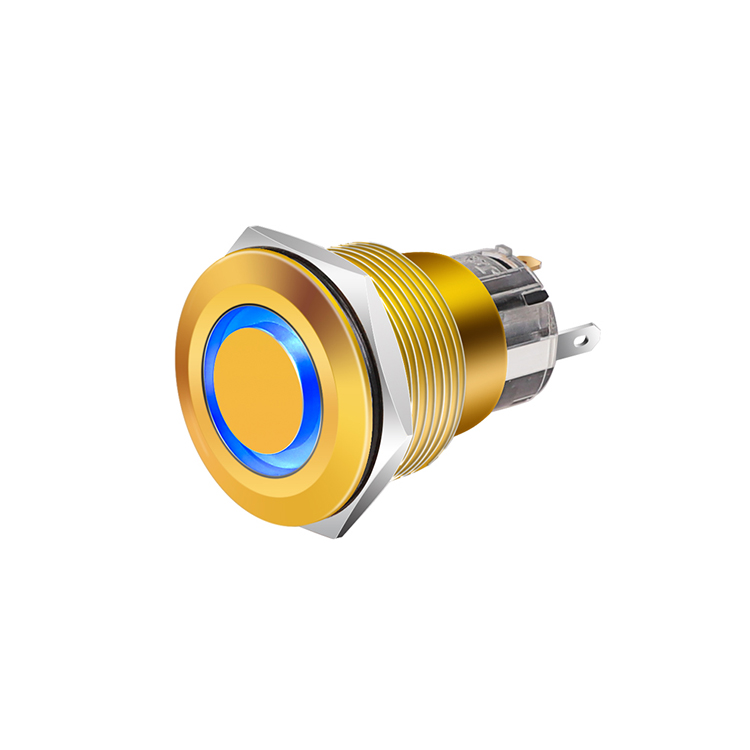

Stainless Steel Metal Switch Φ22MM

Description:

This 22mm metal push button switch has a wide range of applications, such as industrial, mechanical machine tools, aerospace, home appliances, access control systems, military, motor vehicles, etc. Our common metal switch mounting hole diameters are φ12mm, φ16mm, φ19mm, φ22mm, φ25mm, φ30mm, φ40mm.

Features:
1. With super reset function
2. It has strong metal texture and high-end appearance design and color matching
3. Waterproof and dustproof grade up to IP67
4. Mechanical life: more than 500,000 times for self-repairing and more than 100,000 times for self-locking
5. The LED has built-in step-down resistor to avoid welding, the voltage can be selected at will, and it can be used for two-color lighting
6. Optional connector connection to ensure contact performance and reduce waste of labor
7. It has strong self-locking performance and comfortable operating feel
8. Bold pins, stronger reliability

Note: Due to the special products of our company, different specifications will have different prices, so the exact price cannot be determined. If you are interested in buying, please contact our customer service staff, thank you for your cooperation!

Model Description:
      1. Mounting hole diameter (outer diameter of switch thread): 22mm
      2. Head shape: 1: Flat round bevel shell; 2: High flat round bevel shell
      3. Switch combination: 11: 1NO1NC 22: 2NO2NC (NO is normally open contact, NC is normally closed contact)
      4. Operation type: 1: Self-replicating; 2: Self-locking
      5. Lighting type: 0: no light; 1: single point; 2: ring; 3: power sign; 4: ring + power sign
      6. Luminous color: 1-R 2-G 3-B 4-Y 5-W 6-O 7-P
      7. With lamp voltage (AV/DC, V): 1-6 2-12 3-24 4-36 5-48 6-120 7-240
      8. Shell material: 1: stainless steel; 2: brass nickel-plated; 3: stainless steel with titanium-plated gold; 4: aluminum alloy oxidation (remark color)

Protection and installation instructions:
      The metal button switch shell is made of metal material. Compared with the plastic switch, it is not tight and enhances its aesthetics. The appearance color can be diversified, and its dustproof and waterproof performance, explosion-proof performance and corrosion resistance are greatly improved. The waterproof level can reach IP67, and the explosion-proof capability can reach IK10.

Customized logo:
      The button surface of the metal button switch can be laser engraved, pattern or luminous text and pattern, which can be customized according to customer requirements. It has novelty and aesthetics, and replaces the role of signage.
