One: Product description

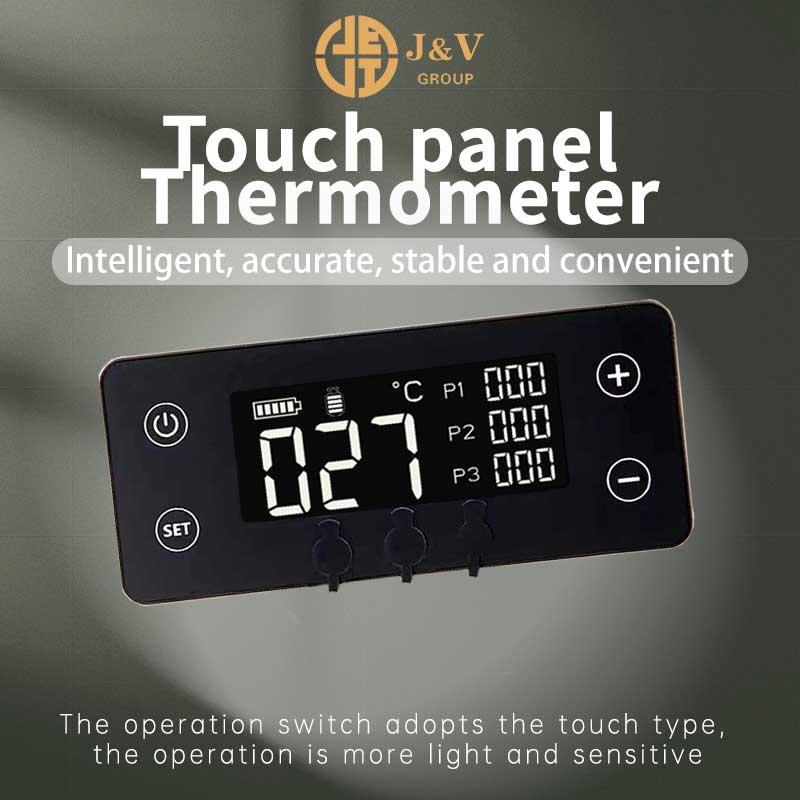

This thermometer is a kind of equipment for measuring meat temperature and furnace temperature. It has the characteristics of intelligent alarm, high accuracy, good stability and easy operation. Operation switch adopts touch type, easy to operate and sensitive.

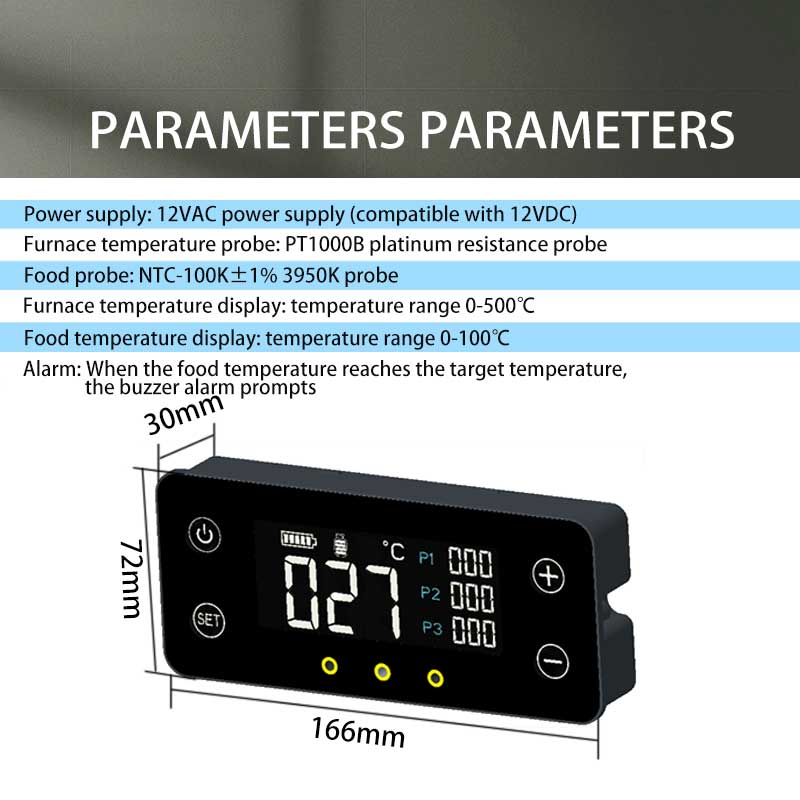

Two: Function description and operation method
Power supply mode: This product is designed for 12VAC power supply, compatible with 12VDC power supply;
Furnace temperature probe: PT1000B platinum resistance probe;
Food probe: NTC-100K±1% 3950K probe;
Furnace temperature display: temperature range 0-500℃;
Food temperature display: temperature range 0-100℃;
Alarm: When the food temperature reaches the target temperature, the buzzer alarm prompts.

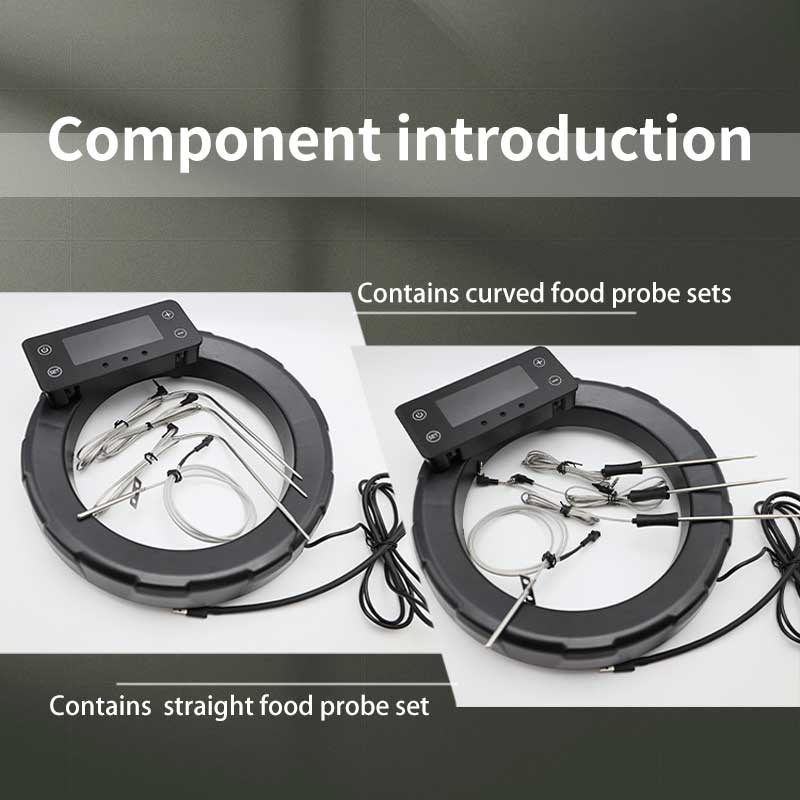

Three: Component list
|
No.
|
Name
|
Qty
|
Description
|
|
1
|
Host
|
1
|
It is responsible for the entire system operation and control
|
|
2
|
Food probe
|
3
|
Used to measure meat temperature
|
|
3
|
RTD temperature probe
|
1
|
Used to measure the temperature of the oven
|
|
4
|
Cylinder meter
|
1
|
Used to measure gas storage capacity
|
Four: Storage and use temperature
Storage temperature range: -10℃~85℃; Relative humidity range: 30%RH to 60%RH
Operating temperature range: -10℃~85℃; Relative humidity range: 30%RH to 60%RH
