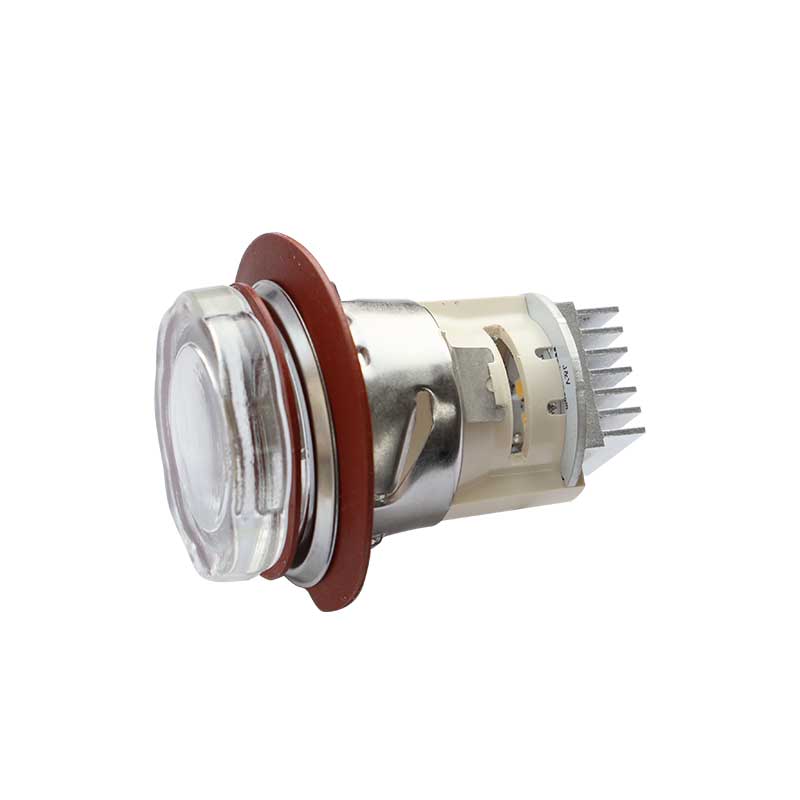

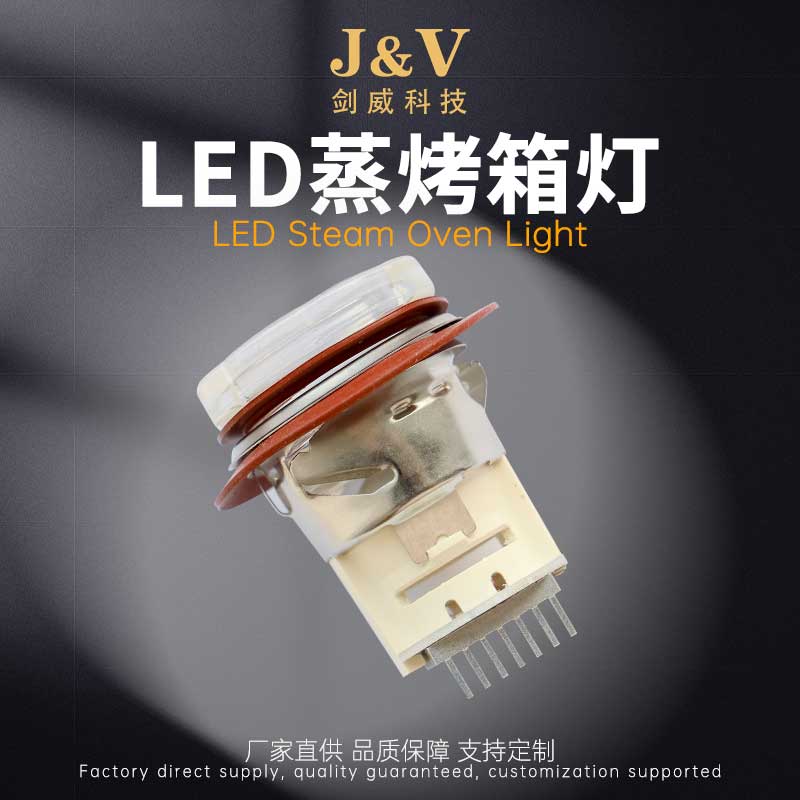

Product Introduction:
1. This product is a circular LED oven light, featuring an aluminum alloy heat sink for efficient heat dissipation. It offers high lumens and high luminous efficacy, and can replace our company's halogen lamps of series 88.21.3.XX, 88.11.3.XX, and 88.51.3.XX, etc.
2. The glass lampshade is available in clear glass and frosted glass, with diverse designs to meet the different lighting requirements of various products.
3. The number of LED beads and color temperature can be adjusted according to needs.
4. This product can be used with a sealing ring or without, depending on the usage environment.
5. This product is commonly used in ovens, steam ovens, and other household appliances.
Product parameters:
|
Name
|
LED Oven Light
|
|
Bare Lumen
|
220lm（Support customization）
|
|
Voltage
|
12VDC
|
|
Power
|
2W(Option)
|
|
MAX. temperature
|
110℃
|
|
Working mode
|
Constant current
|
|
Material
|
Stainless steel lamp housing, PET insulation board, aluminum base LED lamp board, aluminum alloy heat sink
|
|
Glass lamp shade
|
Sodium calcium/high boron glass (optional glass model)
|
|
Average life
|
5000h
|
|
Color temperature
|
3000~6000K (Support customization)
|
|
Wires and terminals
|
UL3122 10362 5128(option)
|

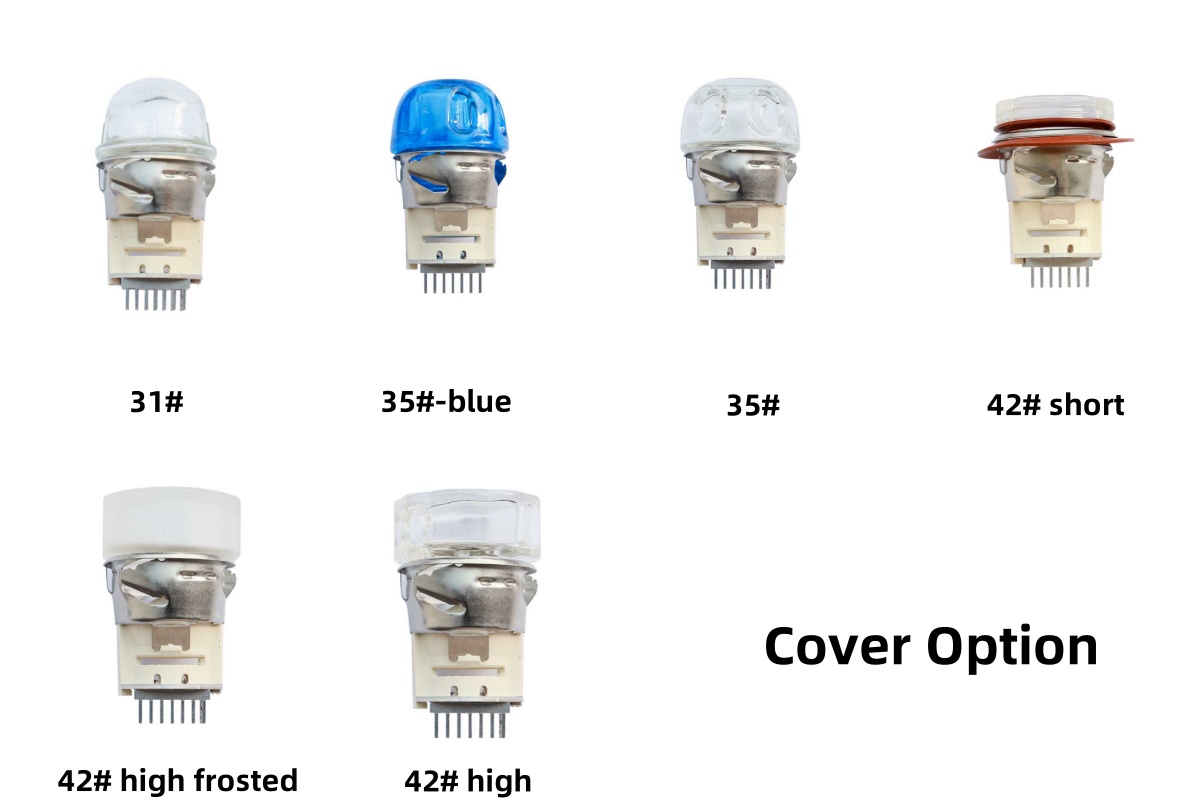

Cover Option:
Note: Because our products are more special, the installation and use must be required to limit, if you intend to buy, please contact us, thank you for your cooperation!
