Model: JV-1205000VS(US)

Rated Voltage: 12V
Power: 60W
Maximum Current: 5000mA
Material: ABS
Mounting dimensions:48.3*83mm
Drawings: Click Download
Contact us for details

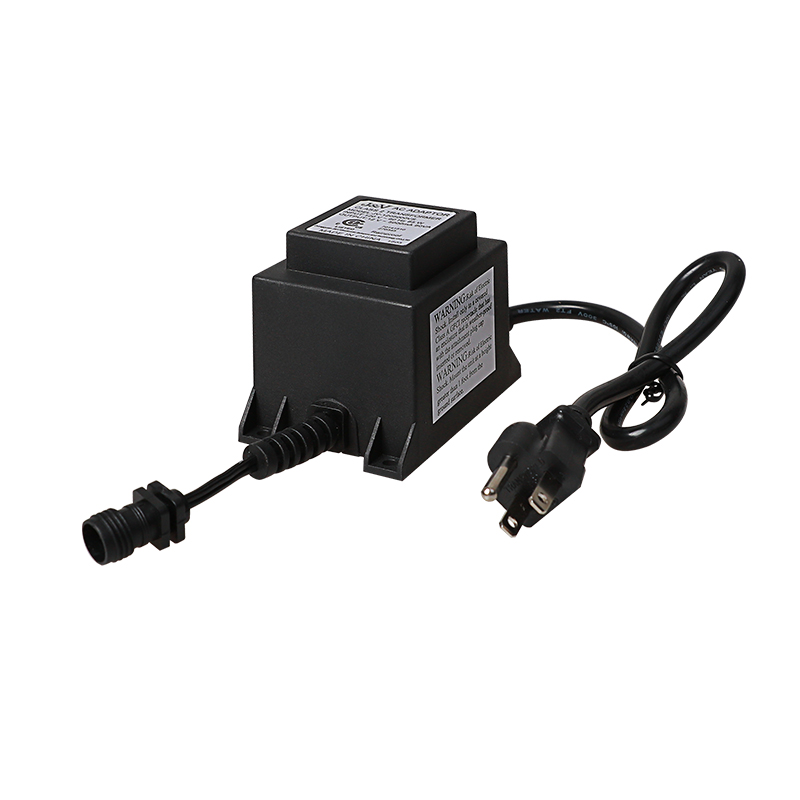

Waterproof Transformer 60W

Product Description

Waterproof Transformer 120V to 12V , Conforming to American standards, the product meets the requirements of UL and passes the UL certification. The printing on the wire requires the cable type, the line number, and the certification instructions.

Product Features

1. Stable voltage transformation, safe escort

2. Powerful inner core, safe transformation

3. Overheat protection to prevent fire

4. Prevent electrical damage

5. Support American standard three plugs and domestic electrical plugs


Note:If you are interested in buying, please contact our customer service staff, thank you for your cooperation!


Product Parameter


Product number:JV-1205000VS;

Insulation grade: B grade (more durable than the market E grade)

Protection level: IP65

Input voltage: 120V 60Hz 85W

Output voltage: 12V 5000mA 60VA

Default plug: default US standard three plug

Shell material: plastic

Insulation class: Class B

Safety regulations: UL/CSA

Working temperature: -10-+40℃

Moisture-proof method: Potting type

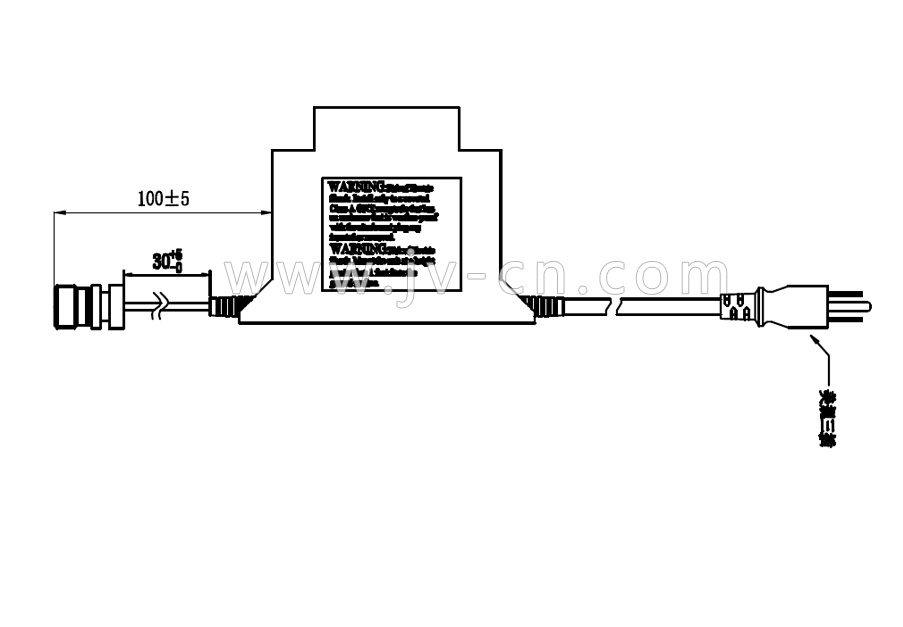

Drawing:
