Model: 88.11.2.22.43250

Rated Voltage: 12V
Power: 10W/20W
Lamp Holder: G4, G5.3, G6.3
Mounting Size: 55*70(mm)

Certificate: UL、CSA、TUV、CE、ROHS、SAA

Drawings: Click Download
  • Rated temperature T550 (continuous use)
  • Oven lamps with halogen mains voltage lamps specify the upper limit and nominal voltage
  • Terminals (in mm) for electrical connection and/or grounding indication (in this product, 6.3*0.8mm)
  • Material thickness indication in millimeters (1.0-1.2mm in this product)
Contact us for details

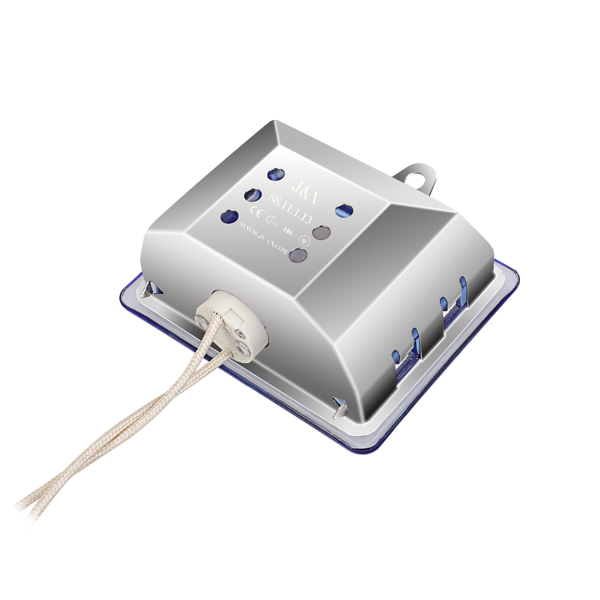

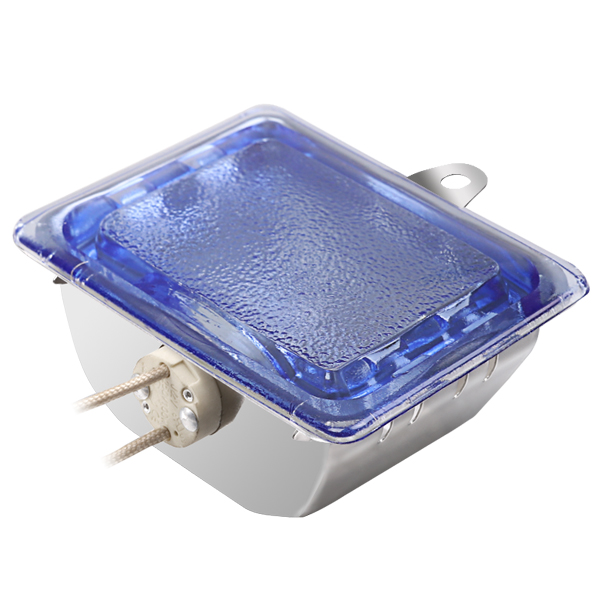

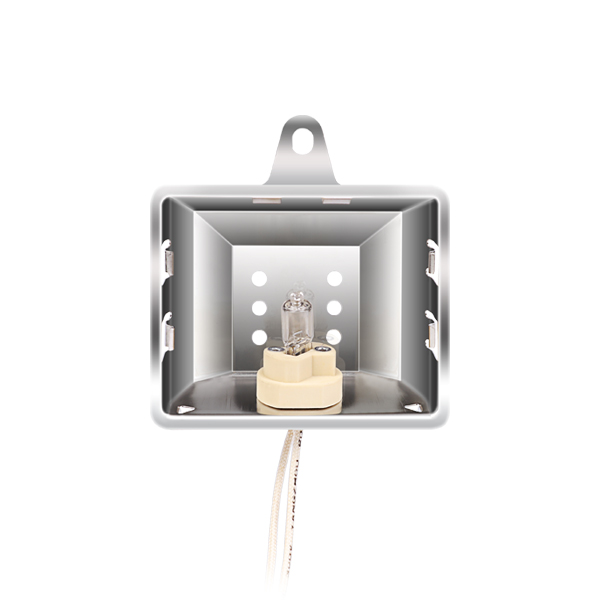

Oven Lamp  Assembly with Blue Lampshade G4 10W 12V

Description:

This oven light is suitable for ovens and microwave ovens. Our common oven lamp installation dimensions are 30*70mm, 55*70mm, φ35.5mm, φ48mm, φ67mm. The highest temperature resistance can reach 550℃. The lampshade type, bulb type, base material, etc. can be customized according to customer needs.

Features:
1. High temperature resistance, low working temperature, good heat dissipation, not easy to cause aging and yellowing of the lampshade
2. High strength and good light transmittance
3. Good heat dissipation performance and long service life
4. Low operating voltage during operation, safe and reliable
5. The bulb is small in size and easy to install
6. High color rendering index
7. Energy saving and environmental protection
8. Quality assurance, passed multiple international certifications

Note: Due to the special products of our company, different specifications will have different prices, so the exact price cannot be determined. If you are interested in buying, please contact our customer service staff, thank you for your cooperation!

Brand:

J&V

Product Type:

Oven Lamp

Model:

88.11.2.22.43250

Mounting Size:

55*70mm

Installation Way:

Snap-in

Temperature resistance:

The highest temperature resistance is 550℃

Bulb:

G4, G5.3, G6.3

Power:

10W/20W

Voltage:

12V

Lamp shell material:

SUS

Lamp holder material:

Ceramic lamp holder

Shade material:

Borosilicate glass

Terminal type:

250 female terminal, 6.3*0.8mm

Safety:

UL、CSA、TUV、CE、ROHS、SAA
