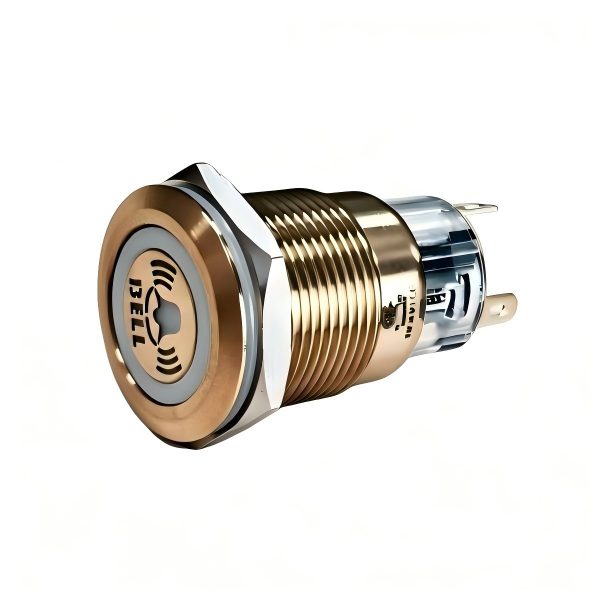

19mm AC230V Illuminated Stainless Steel Push‑Button Switch
This 19mm momentary illuminated push‑button is suitable for industrial control cabinets, instruments, industrial machinery, kitchen appliances, outdoor equipment and other applications requiring high‑voltage signal indication.
-
304 stainless steel housing; PC or stainless steel options for button face, delivering smooth surface and premium texture.
-
IP67 water‑proof and IK10 impact‑resistant. Operates within ‑20℃~+85℃ to adapt to various harsh working conditions.
-
Rated for AC120‑250V; LED directly driven by AC230V, with 1NO1NC contact configuration.
-
Silver‑alloy contacts and H62 gold‑plated switch pins ensure stable conductivity. Mechanical life up to 500,000 cycles, electrical life 100,000 cycles, LED service life reaches 40,000 hours.
-
Two wiring options: connector plug‑in or soldering. Cutout size Φ19.2mm, fits panel thickness up to 12mm.
Note: Multiple configurations are available. Prices vary by specification. Please contact our sales team for procurement inquiries.
