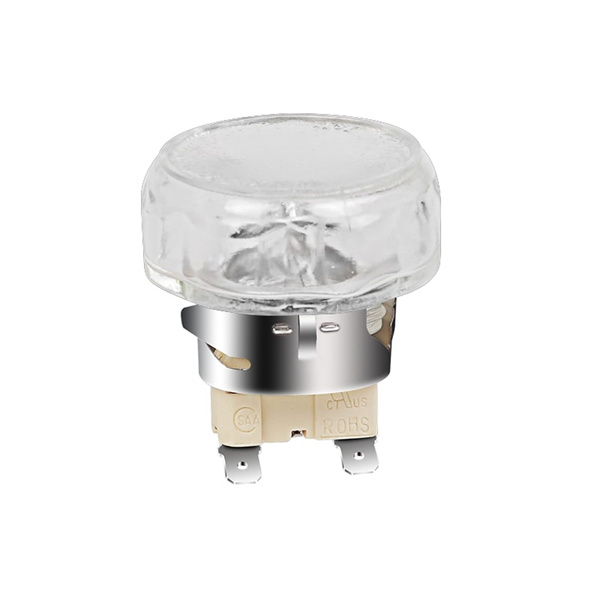

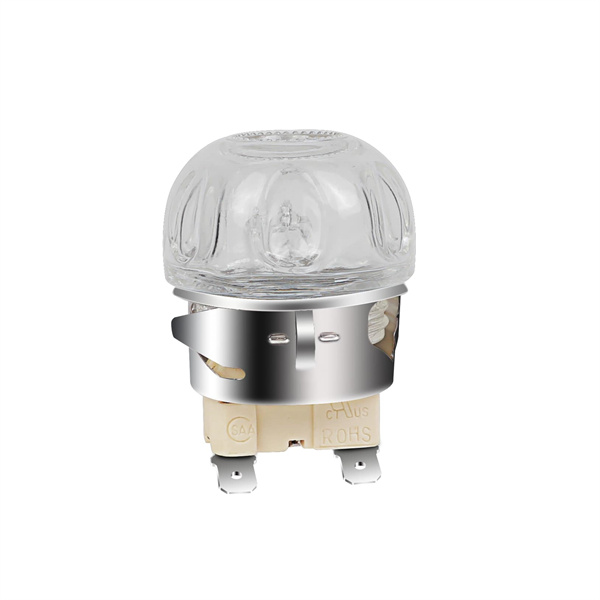

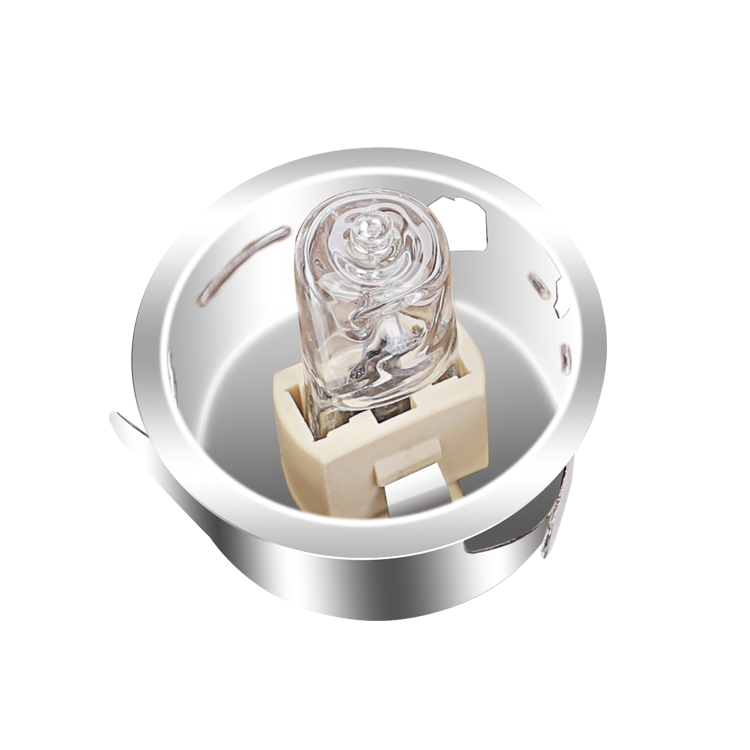

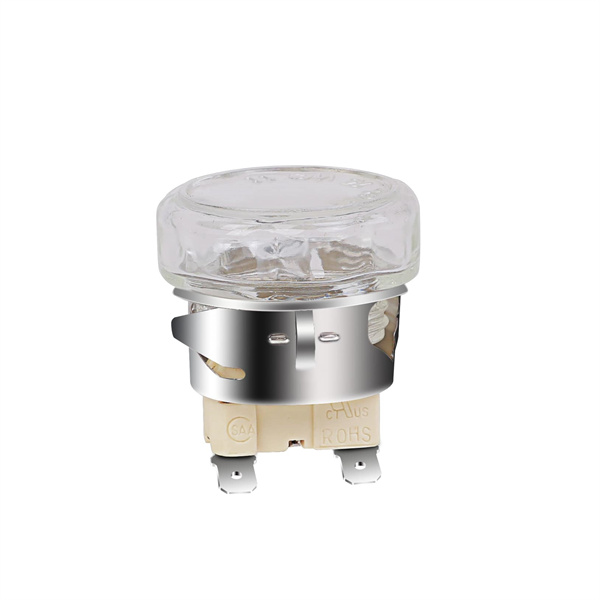

Oven Lamp G9 230V 25W
Description:
This halogen oven light is suitable for ovens and microwave. Our common oven light installation dimensions are 30*70mm, 55*70mm, φ35.5mm, φ48mm, φ67mm. Shade type, bulb type, base material, etc. can be customized according to customer needs.8. Quality assurance, through multiple international certifications
Related Product Parameters:
Product Model |
Power |
Wires |
Temperature |
Fixing |
Bulb Type |
Voltage |
Lens Material |
Lampholder Material |
Reflector |
88.21.3.35.91510.5 |
25W |
10362/18# |
Max, 250℃ |
Snap in fixing |
G9 |
110-130V |
Borosilicate glass 550℃ |
Ceramics |
Stainless Steel |
88.21.3.35.91550.5 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
|||||
88.21.3.35.92510.5 |
25W |
10362/18# |
Max, 250℃ |
220-250V |
|||||
88.21.3.35.92550.5 |
25W |
5128/18# |
Max, 450℃ |
220-250V |
|||||
88.21.3.35.92710.5 |
25W |
5128/18# |
Max, 450℃ |
220-250V |
|||||
88.21.3.35.92750.5 |
25W |
10362/18# |
Max, 250℃ |
220-250V |
|||||
88.21.3.35.91710.5 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
|||||
88.21.3.35.91750.5 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
|||||
88.21.3.35.91510.3 |
25W |
10362/18# |
Max, 250℃ |
Snap in fixing |
G9 |
110-130V |
Soda lime glass 350℃ |
Ceramics |
Stainless Steel |
88.21.3.35.91550.3 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
|||||
88.21.3.35.92510.3 |
25W |
10362/18# |
Max, 250℃ |
220-250V |
|||||
88.21.3.35.92550.3 |
25W |
5128/18# |
Max, 450℃ |
220-250V |
|||||
88.21.3.35.92710.3 |
25W |
5128/18# |
Max, 450℃ |
220-250V |
|||||
88.21.3.35.92750.3 |
25W |
10362/18# |
Max, 250℃ |
220-250V |
|||||
88.21.3.35.91710.3 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
|||||
88.21.3.35.91750.3 |
25W |
5128/18# |
Max, 450℃ |
110-130V |
Note: Due to the special products of our company, different specifications will have different prices, so the exact price cannot be determined. If you are interested in buying, please contact our customer service staff, thank you for your cooperation!
Learn more Products
Household Electric Lighting
Oven Lamp Steaming Light LED Oven Light
Lampholder Range hood lamp Halogen lamp
Microwave oven lamp LOGO lamp Air fryer lamp
Ultraviolet lamp Dishwasher lamp
Electrical Control System
Metal Button Switch Pellet Grill Control System LED Knob
Indicator Light Body Sensing Switch Waterproof Transformer
Electrical Accessories for Kitchen and Bathroom
Grill Accessories
Electric Control Box Feeding Motor Fan Food Probe
Grill Temperature Probe Feeding Screw Cooling Fan Ignition Rod
Brand: |
J&V |
Product type: |
Oven lamp |
Model: |
88.21.3.35 |
Mounting size: |
φ35.5mm |
Mounting method: |
Screw fixed |
Bulb: |
G9 |
Power: |
25W/40W |
Voltage: |
230V/120V |
Lamp holder material: |
Ceramic lamp holder 88.21 |
Shade material: |
High borosilicate glass, the maximum temperature is 550 degrees Celsius(optional) |
Wiring type: |
UL18 AWG, Fiberglass (up to 450°C)(optional) |
Terminal: |
250 female terminal (6.35*0.8)(optional) |
Safety: |
UL、CSA、TUV、CE、CQC、ROHS |
